Str1140
Code name (Unique Key)
Str1140
Type of structural unit
Vertical timber reinforcement system of masonry
List of related timber evidence
Chase in a wall
Hole
Location code
Space code
Position in the space

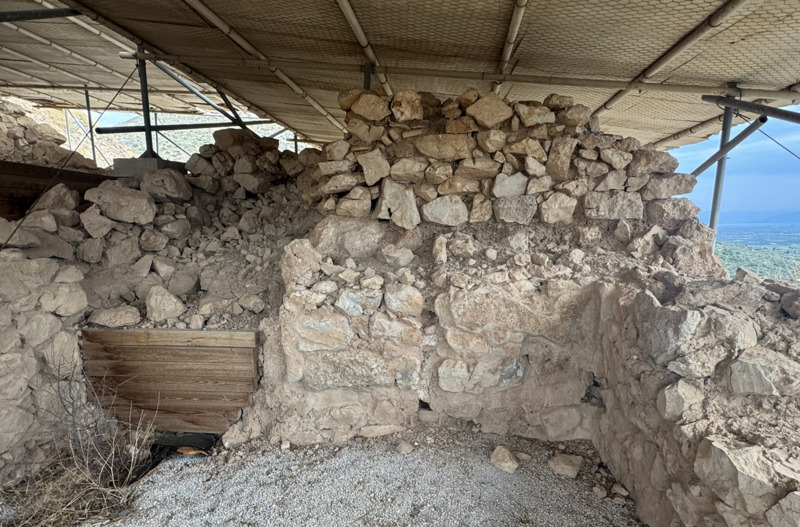

Southeast wall of room 58
Preserved height
0.90
Preserved length
1.90
Preserved width
ca 0.80
Distance of vertical timber elements / pairs (between and from the ends of the wall)
0.80-0.90
Presence of stone bases for the vertical timbers
No
Presence of other transversal horizontal timber along the height of the wall
Yes
Distance of 1st longitudinal horizontal timber from the ground
ca 0.15m above current ground level
Type of masonry of the wall
Rubble masonry
Current state of preservation
Partly restored
Method of documentation
On site
General description of the vertical timber reinforcement system

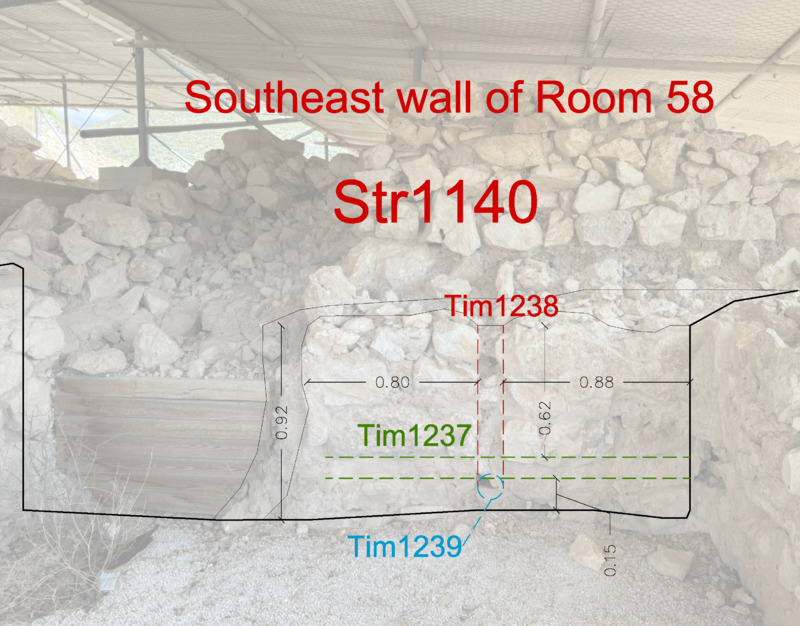

Vertical reinforcement system in the southeast wall of Room 58 preserving the chases for one vertical timbers, one horizontal timbers, and one transversal timber
